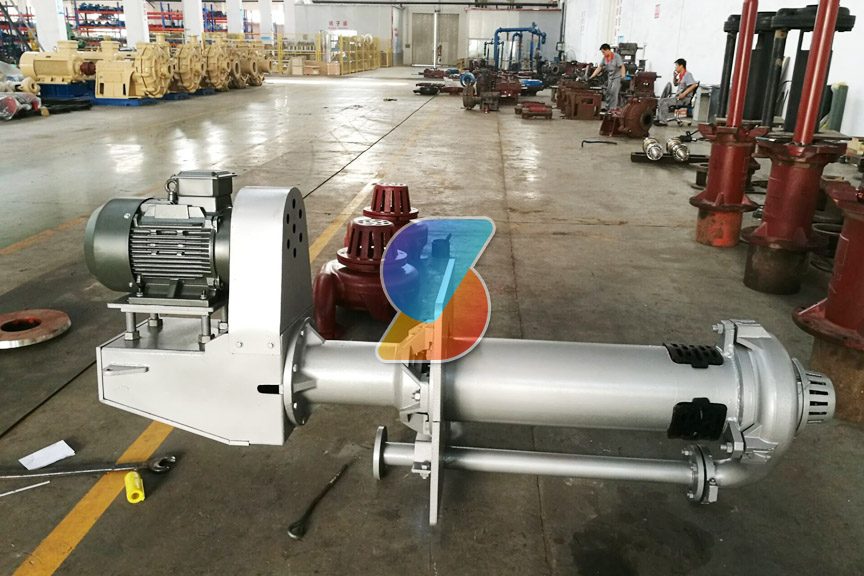

Vertical Slurry Pump are centrifugal
slurry pumps submerged in sump to work.They are designed for delivering
abrasive,large particle and high density slurries.These pumps have no
need of any shaft seal and sealing water. They can also be operated
normally for insufficient suction duties.Wet parts of type TP pump are
made of abrasion-resistant metal. All parts of type TPR pump immersed in
liquid are lined with rubber outer liner.They are suited to transport
non-edge angle abrasive slurry.
Specification:
Size (discharge): 40mm to 300mm
Capacity: 7.2~ 1492 m3/hr
Head: 5.5m ~ 47 m
Handing solids: 0 ~ 65mm
Concentration: 0%~ 70%
Material:High chrome alloy,Rubber,Polyurethane,Stainless steel etc.
Detailed specification:
1.Cantilevered shaft design.
2.Double suction semi-open impeller.
3.Agitator option keeps solids in suspension.
4.TPR models feature full rubber covering for corrosion resistance.
5.Recessed impeller option passes oversized material.
6.Fully elastomer lined or hard metal
fitted. No submerged bearings or packing. High capacity double suction
design. Optional recessed impeller and suction agitator available.
7.No submerged bearings or packing. High
capacity double suction design. Optional recessed impeller and suction
agitator available.
