Vertical Sump Slurry Pump

  • Vertical Sump Slurry Pump
  • Vertical Sump Slurry Pump
  • Vertical Sump Slurry Pump
  • Vertical Sump Slurry Pump

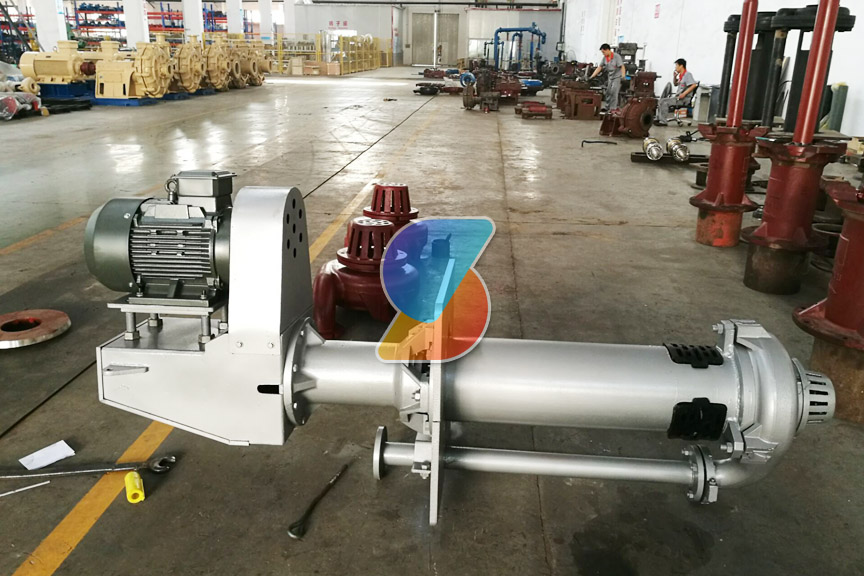

  1. Vertical Sump Slurry Pump

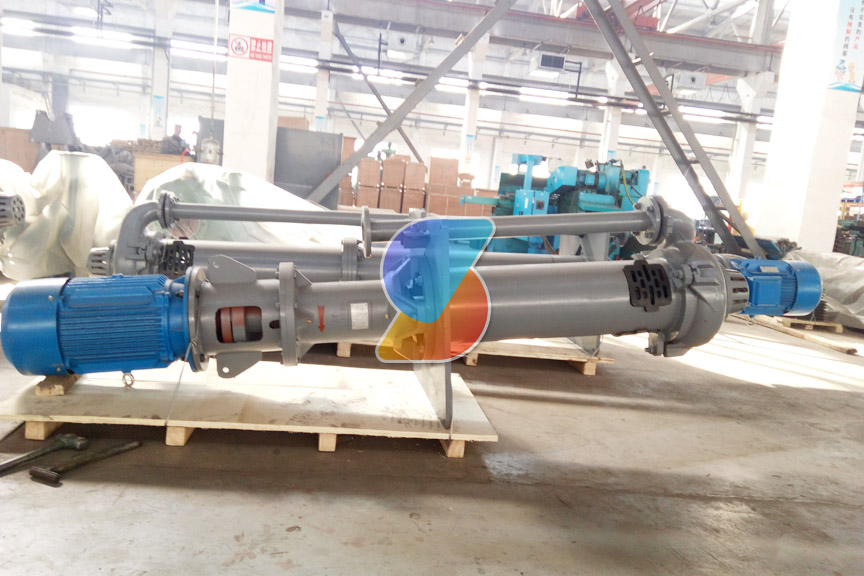

  2. Vertical Sump Slurry Pump

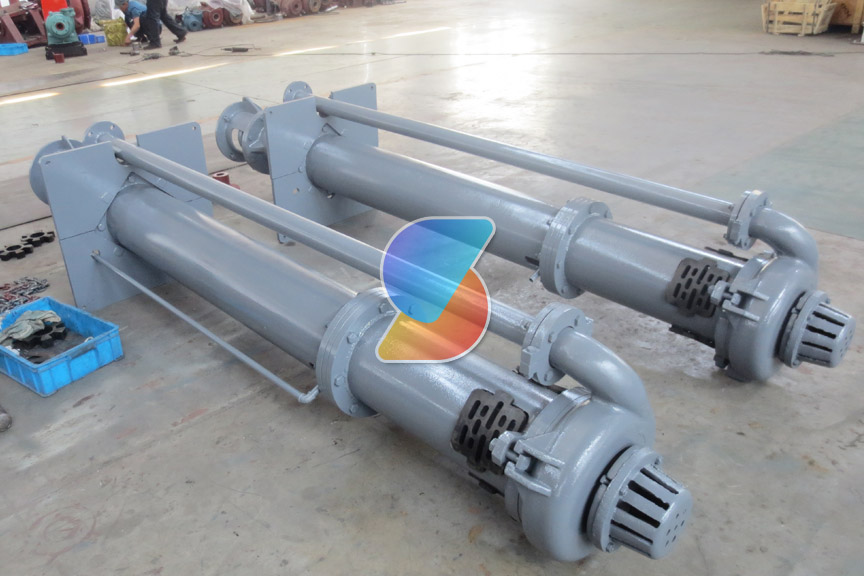

  3. Vertical Sump Slurry Pump

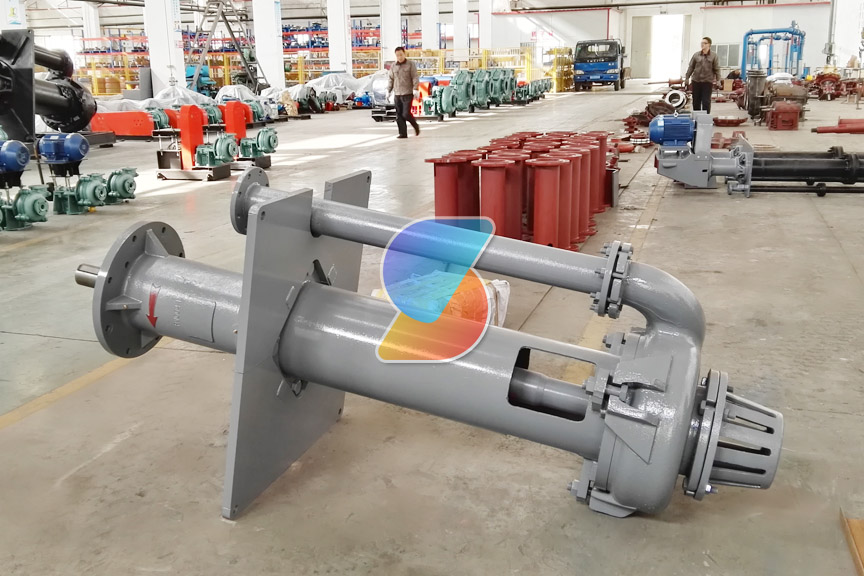

  4. Vertical Sump Slurry Pump

Details

Vertical Slurry Pump are centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type TP pump are made of abrasion-resistant metal. All parts of type TPR pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.



Specification:

Size (discharge): 40mm to 300mm
Capacity: 7.2~ 1492 m3/hr
Head: 5.5m ~ 47 m
Handing solids: 0 ~ 65mm
Concentration: 0%~ 70%
Material:High chrome alloy,Rubber,Polyurethane,Stainless steel etc.



Detailed specification:



1.Cantilevered shaft design.

2.Double suction semi-open impeller.

3.Agitator option keeps solids in suspension.

4.TPR models feature full rubber covering for corrosion resistance.

5.Recessed impeller option passes oversized material.

6.Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

7.No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
